उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|
| Application: | Beer, Drinking water, Soda water, Soft drink, | Filling Head: | 12 |
|---|---|---|---|
| Suitable bottle: | 200mL-1.5L | Capping Head: | 6 |
| Bottle Type: | Glass Bottle/Stainless Steel Bottle etc | Capacity: | 1,000-2,000bph(500ml bottle) |
| Bottle Shape: | Round, Square, Rectangular, Irregular | ||
| हाई लाइट: | Carbonated Drink Filling Line,plc based automatic bottle filling system |
||
Quick Detail:
Specifications:
|
Application |
Soft drink, Carbonated drink, Soda water, Beer |
|
Suitable bottle |
Glass Bottle, Stainless Steel etc |
|
Bottle Height |
Bottle height. Φ160—φ340mm |
|
Bottle Diameter |
Bottle dia.φ50-φ90mm |
|
Suitable cap type |
Metal Crown Cap, Easy-open cap, Aluminum screw cap |
|
Supply Capacity |
1,000 to 2,000 bottles per hour(500ml bottle) |
|
Filling style |
Count-pressure filling |
|
Filling Temperature |
ambient |
|
Voltage |
220/380V |
|
Automatic Grade |
Automatic |
|
Driven Type: Electric |
Electric |
|
Material: |
High quality SUS304/316 stainless steel |
| After-sales Service Provided | Engineers available to service machinery overseas |
Description:
Main Structure
1, Enter bottle type: linear type. Enter bottle from the left chain
2, Physical design: The most fully considering the demands of health

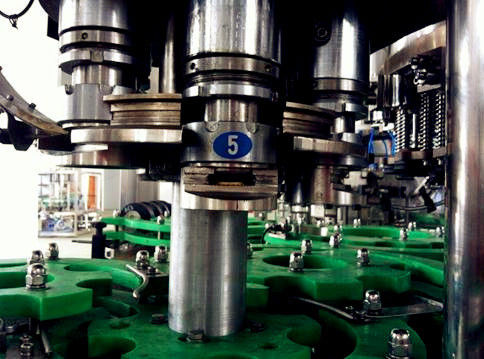

3, Filling the cylinder, filling valve and all the parts touch with the filling material are made of the low carbon stainless steel, not only have Good corrosion resistance but also easy to cleaning.
4, Filling quality: high speed , high quality of filling valve and it can sure the fine quality of filling.
5, Bottles of liquid level control is accurate, the height difference is decided to by different bottle neck diameter. As usual not exceeding ± 5mm
6, Operating is safe and reliable. Used to the PLC control, high degree of automation .
7, Using the inverter stepless speed regulation, speed adjustment is very convenience .
This equipment used the Engineering plastics star wheel structure, when the change the high and low bottles, adjustment the height of the main motor, change the plastic wheel under the star wheel, and then it can production and working. Let the customer put into production more fast and convenience.
8, On the main motor is equipped with safety protection device, if there have abnormal can be automatic stop.
Main Parts:
1, Bottle feeding impeller
2,Bottle feeding screw
3, Rinser
4, Filler

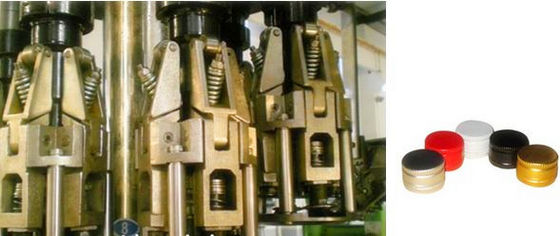

5, Capper for ROPP caps and aluminum caps
Main brand:
|
Main motor |
Siemens |
|
Liquid level sensor |
France brand |
|
Spray pump |
Southern pump |
|
Touch screen |
Siemens |
|
PLC |
Mitsubishi |
|
Transducer |
Mitsubishi |
|
Photoelectric Proximity Switch |
Omron |
|
Contactor circuit breaker |
Schneider |
|
Main original of cylinder solenoid valve |
Airtac Taiwan |
|
Seal ring |
America SEALTECH COMPANY |
|
Valve, tank, pipeline contact with wine |
304 stainless steel |
Competitive Advantage:
1. With little abrasion and stable operation
2. With high filling speed and exact liquid level.
3, Fully automatic rinsing, filling and capping by PLC control;
4, No bottle no rinse;
5, All product contact parts are made of qualified stainless steel, which wearable, stable with less malfunction.
6, Easy to operate and maintain.
7, PLC and transducers and other main electric parts are of world famous brands, such as OMRON, MITSUBISHI etc.
Benjamin Machinery pays great attention to technology, such as beer processing and filling technology, high-viscosity filling technology, glass bottle water filling technology.
And we will try our best to satisfy your requirement; your message will be highly appreciated. Welcome to Benjamin Machinery.
