| हाई लाइट: | industrial submersible pump,sewage submersible pumps |
||
|---|---|---|---|

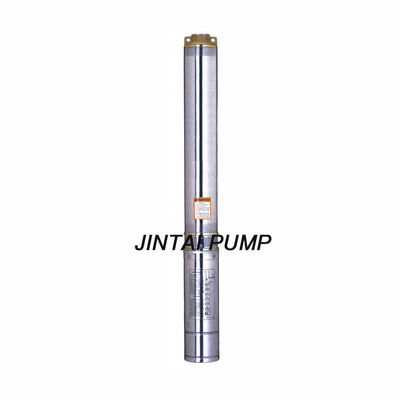

Single Phase Deep Well Submersible Water Pumps with Plastic Impeller
Deep Well Pump :
1. CE,GS,ROHS certificate
2. Warranty: 2 years
3. Delivery:30 days
Identification Code
eg: JSD4/2-7(S)
JSD: Pump Name
4 : Well dia 4"
2 : Capacity(m3/h)
7 : Impeller’s Number
S : Single Phase
Applications :
For water supply from wells or reservoirs.
For domestic use, for civil and industrial applications.
for garden use and irrigation.
Operating conditions :
Maximum fluid temperature up to +35 C
Maximum sand content: 0.25%
Maximum immersion depth: 80m.
Minimum well diameter: 4”
Motor :
Rewind able motor
Three-phase: 380V-415V/50Hz
Single-phase: 220V-240V/50Hz
Equip with special start-up control box
Internal diameter of outlet:
1.25” 1.5”
Special features available
Other voltages.
Frequency 60Hz.
Other mechanical seal.
Equip with Auto-control box.
Warranty: 2 year
(according to our general sales conditions).
Material:
1, Pump external casing:AISI304ss
2, Delivery casing: Cast-Cu ASTM280 or AISI 304ss
3, Suction lantern: Cast-Cu ASTM280 or AISI 304ss
4, Diffuser: Plastic.PC
5, Impeller : Plastic.POM
6, Shaft : AISI316ss or AISI 304ss
7, Shaft coupling: AISI316ss or AISI304ss
8, Wear ring: AISI304ss
9, Motor external casing: AISI304ss
10, Top cover: Cast-Cu ASTM280 or Cast iron G20 UNI5007
11, Bottom support: AISI304ss
12, Mechanical seal: Special seal for deep well (carbon -SIC/TC)
13, Shaft: AISI316ss-C1045
14: Bearing : NSK (Japan)
15: Seal lubricant oil: Oil for food machinery and pharmaceutical use
