| Product Name: | Oil pump | Drum Application: | 50-60L / 13-16gallon |
|---|---|---|---|
| Pressure Ratio: | 5:1 | Oil Application: | Motor oil; synthetic oil; hydrauic oil; gear oil |
| Oil Type: | SAE 240 | Max. Fluid Pressure: | 40bar / 580psi |
| प्रमुखता देना: | air driven oil pump |
||

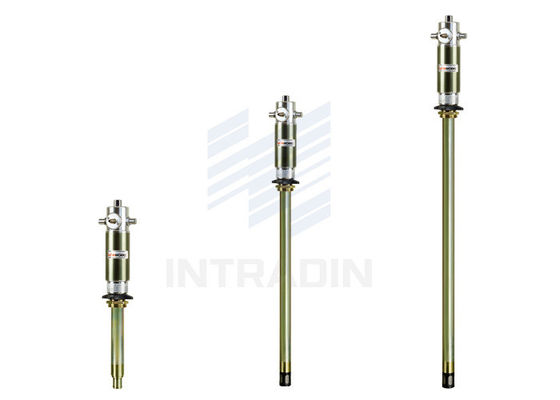

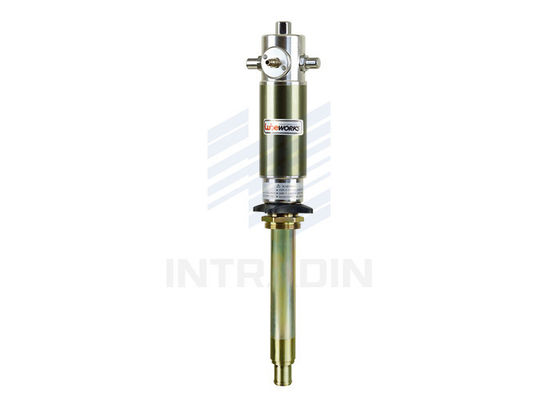

5:1 Differential Air Motor 50 Liter Pneumatic Oil Pump for Double Action
5:1 Air operated oil transfer pump
Specifications:
| Item No. | 1701051 | 1701052 | 1701053 |
| Drum application | Wall mounted | 50-60L / 13-16gallon | 180-220L / 48-58gallon |
| Pressure ratio | 5:1 | 5:1 | 5:1 |
| Air inlet pressure | 5-8bar / 70-115psi | 5-8bar / 70-115psi | 5-8bar / 70-115psi |
| Max. fluid pressure | 40bar / 580psi | 40bar / 580psi | 40bar / 580psi |
| Air motor effective diameter | 63mm / 2.49" | 63mm / 2.49" | 63mm / 2.49" |
| Air consumption (min) | @ 8bar 125L | @ 8bar 125L | @ 8bar 125L |
| @ 115psi 4.5CFM | @ 115psi 4.5CFM | @ 115psi 4.5CFM | |
| Max.free flow rate (min) | 14L / 3.7gpm | 14L / 3.7gpm | 14L / 3.7gpm |
| Suction tube diameter | 42mm / 1.65" | 42mm / 1.65" | 42mm / 1.65" |
| Suction tube length | 270mm / 10.6" | 730mm / 28.7" | 940mm / 37" |
| Air inlet connection | 1/4" quick plug | 1/4" quick plug | 1/4" quick plug |
| 1/4" NPT Female | 1/4" NPT Female | 1/4" NPT Female | |
| Oil outlet connection | 1/2" M | 1/2" M | 1/2" M |
| Weight | 5kgs / 11lbs | 5.5kgs / 12lbs | 6kgs / 13lbs |
| Package size | 13x13x62cm | 13x13x108cm | 13x13x128cm |
Description:
| • Air operated for integration into dispensing system | ||
| • Smart design with fewer parts for less pump wear & tear | ||
| • Differential air motor ensures smooth pumping | ||
| • Typical fluids handled include motor oil, synthetic oil, | ||
| hydraulic oil, gear oil and automatic transmission fluid | ||
| • Double action | ||
| • Suitable for use of oil to SAE240 | ||
| • Supplied with adjustable 2'' bung adapter | ||
|
|
