| Style:: | Horizontal | Material:: | PE, PP, A.B.S |
|---|---|---|---|
| Working Principle:: | High Speed, Hydraulic | Clamping Force:: | 1400KN |
| Product Name:: | Injection Molding Equipment | Application:: | Household, Industrial |
| हाई लाइट: | plastic injection molding equipment,plastic injection moulding machine |
||

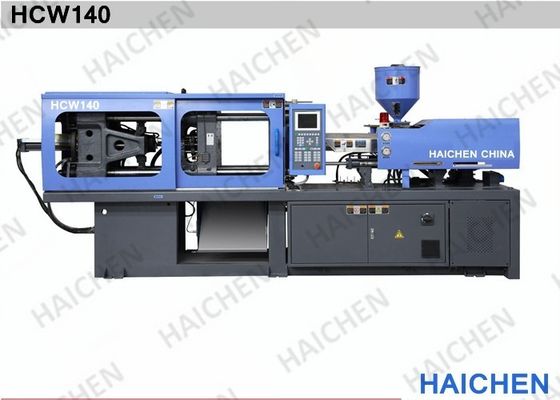

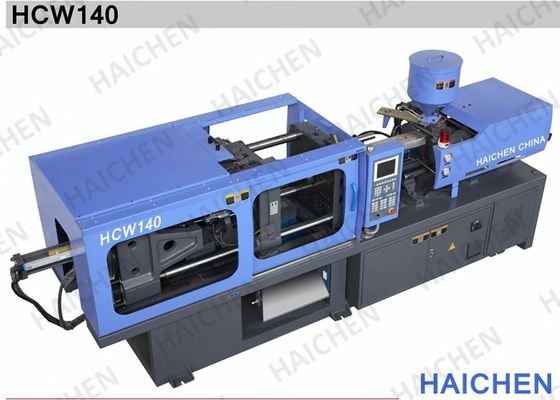

HCW140 Hydraulic Horizontal PE Plastic Injection Molding Machine
Quick Detail:
HCW140 Plastic Injection Molding Machine is for normal type plastic material injection, e.g. PC, PP, PE, Nylon, A.B.S.etc.This machine is mainly used to produce middle&big industrial parts, household appliances and other plastic products
Applications:
Plastic Injection Molding Machine is for middle &big industrial parts, household appliances and other plastic products, mold cavity can be: 1 Cavity, 2 Cavities, 3 Cavities, 4 Cavities, 6 Cavities, 8 Cavities, 10 Cavities, 12 Cavities.
Description:
HCW140 injection molding machine is the type of fully automatic machine, being provided with high efficiency, high reliability, high speed, low noise, low power consumption and other advantages.
Machine main components adopt world famous brand, e.g.:
• PLC: TECHMATION CONTROLLER(Taiwan)
• AC Contactor: SIEMENS(Germany)
• Travel switch: SCHNEIDER(FRANCE),
• Transducer: NOVOTK (Germany)
• Proportional Valve: HNC(TAIWAN)
• Oil pump: VICKERS(USA)
• Directional Valve: VICKERS(USA)
• High-pressure pipe line: GOOD YEAR (USA)
Specifications :
| INTERNATIONAL CLASS NO | HCW140 | |||
| A | B | C | ||
| INJECTION UNIT | ||||
| Screw diameter | mm | 38 | 42 | 45 |
| Screw L/D ratio | L/D | 22.1 | 20 | 18.6 |
| Shot volume(theoretical) | cm3 | 193 | 235 | 270 |
| Injiection weight(ps) | g | 176 | 213 | 246 |
| Injection rate | g/s | 94 | 115 | 132 |
| Injection pressure | Mpa | 205 | 170 | 147 |
| Screw pressure | rpm | 190 | ||
| CLANPING UNIT | ||||
| Clamping force | kN | 1400 | ||
| Open stroke | mm | 380 | ||
| Space between tie bars(W×H) | mm | 410×410 | ||
| Max.Mold height | mm | 450 | ||
| Min.Mold height | mm | 160 | ||
| Ejector stroke | mm | 120 | ||
| Ejector force | kN | 50 | ||
| OTHERS | ||||
| Max.Pump pressure | MPa | 16 | ||
| Pump motor power | kW | 13 | ||
| Heating power | kW | 7.9 | ||
| Machine dimension(L×W×H) | m | 4.48×1.11×1.9 | ||
| Oiltank cubage | L | 270 | ||
| Machine weight | t | 4 | ||
PLATEN SIDE
