| Structure:: | Multistage Pump | Theory:: | Centrifugal Pump |
|---|---|---|---|
| Power:: | Solar | Pressure:: | High Pressure |
| Impeller: | Stainless steel | max.head: | 330meters |
| हाई लाइट: | deep well solar pumps,solar centrifugal pump |
||

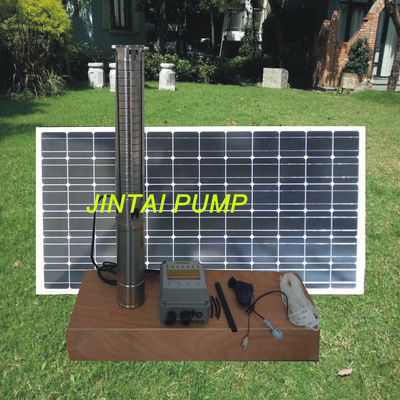

216V 288V Agriculture Solar Powered Pump / 4 inch Solar centrifugal pump JCS4-8.0
Technical Data :
| TYPE | VOLTAGE | RATE POWER | MAX FLOW | MAX HEAD | OUTLET SIZE | DIAMETER OF PUMP |
| (v) | (w) | (m3/h) | m | (inches) | (mm) | |
| JCS4-8.0-25 | 36V | 370 | 8 | 25 | 1.25/1.5 | 100 |
| JCS4-8.0-38 | 48V | 550 | 8 | 38 | 1.25/1.5 | 100 |
| JCS4-8.0-54 | 48V | 750 | 8 | 54 | 1.25/1.5 | 100 |
| JCS4-8.0-72 | 72V | 1100 | 8 | 72 | 1.25/1.5 | 100 |
| JCS4-8.0-106 | 216V | 1500 | 8 | 106 | 1.25/1.5 | 100 |
| JCS4-8.0-130 | 288V | 2200 | 8 | 130 | 1.25/1.5 | 100 |
| JCS4-8.0-210 | 288V | 3000 | 8 | 210 | 1.25/1.5 | 100 |
| JCS4-8.0-248 | 288V | 4000 | 8 | 248 | 1.25/1.5 | 100 |
Applications:
1. Irrigation of agricuture.
2. Drinking water and living water.
3. It also can be used for fountains.

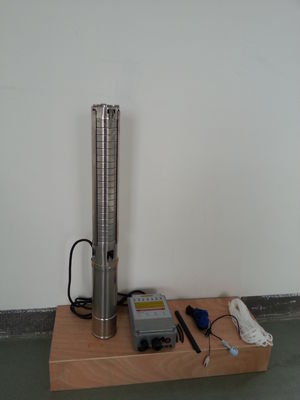

Pump set includes:
|
1. Solar pump with 3m cable, longer cable is available |
|
2. Controller |
|
3. Water level sensor or float switch:10meter cable, longer cable is available |
|
4. Cable for solar panel: 6m, longer cable is available |
|
5. Cable connector |
|
6. Solar panels are option |
|
7. Rope |
|
8. Installation Manual |
Competitive advantages:
** ADVANCED TECHNOLOGY:
1 . Application innovation Compared with the traditional alternating current machine,the efficiency is improved
25% by the permanent magnetism,direct current,brushless, non-sensor motor.Technics innovation Adopt
double plastic package for rotor and stator, motor insulation≥300MΩ, the motor security was much improved.
High technique products adopting MPPT and DSP chip technique.
2. Save money, environmental protection
** MATERIAL OF PARTS:
Pump body: stainless steel
Motor body:stainless steel
Impeller:stainless steel
Bearing:NSK
