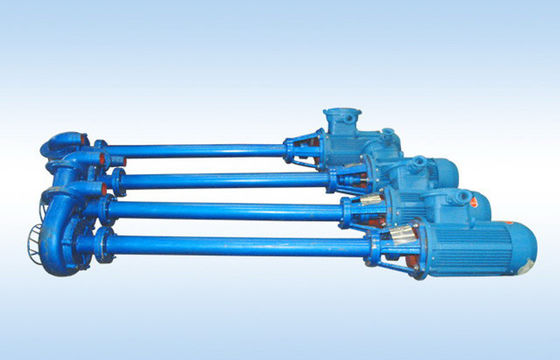

Well Drilling equipment Solid Control Equipment Horizontal submersible slurry pump
Quick Detail:
1, Model: 50YZ20-18
2, Power :1450r/min
3, Speed %: 42-51
4, Lift: 18-30m
5, Efficiency:3-45KW
6, Flow: 20-270m
Description:
Submersible slurry pump is with structure of vertical single stage and single suction overhung centrifugal pump, it is made of abrasion-resistant alloy, it can convey medium with high concentration particles. There is no bearing and gland seal Seal between impeller and pump body, so it is maintenance-free and high temperature resistant, it is ideal equipment to provide impetus for desander, desilter and centrifuge.
Specification:
| Model | Flow | Lift | Power | Speed | Efficiency |
| m3/h | (m) | (r/min) | (%) | (KW) | |
| 50YZ20-18 | 20 | 18 | 1450 | 42 | 3 |
| 50YZ40-10 | 40 | 10.5 | 1450 | 47 | 4 |
| 50YZ50-12 | 60 | 10.8 | 1450 | 55 | 5.5 |
| 80YZ50-20 | 60 | 18 | 1450 | 48 | 7.5 |
| 80YZ80-20B | 80 | 13.4 | 1450 | 51 | 7.5 |
| 80YZ80-20A | 90 | 15 | 1450 | 51 | 11 |
| 100YZ100-30A | 110 | 24 | 1450 | 54 | 18.5 |
| 100YZ100-30 | 100 | 31 | 1450 | 54 | 22 |
| 120 | 28 | 1450 | 56 | ||
| 100YZ160-38B | 164 | 26 | 1450 | 50 | 30 |
| 150YZ250-40B | 240 | 24 | 1450 | 50 | 37 |
| 150YZ250-40A | 270 | 30 | 1450 | 51 | 45 |
Applications:
Oil field drilling,solid control system/equipment,drilling equipment,drilling fluid treatment etc.
Competitive advantages:
Competitive price with top quality,professional export service,provide all products as customer’s requirement,respond within shortest time.
