| Number of Roller rows: | about 16 to 20 rows | Roller material: | GCR15 steel with heat treatment |
|---|---|---|---|
| Type: | Metal Roof Tile Roll Forming Machine | Axis diameter: | 80mm |
| Axis material: | High grade 45# steel | Hydraulic pressure: | 20Mpa |
| प्रमुखता देना: | sheet metal roll forming machines |
||
7.5Kw Cutting Power Metal Roll Forming Machine With Hydraulic Oil Pump
Composition of machine
Machine Specifications
Decoiler
| Decoiler Capability | 5/8/10Tons |
| Decoiler ID | 510-610mm |
| Decoiler OD | Max 1300mm |
| Decoiler Type | Manual/automatic/Hydraulic |
Main Roll forming Machine
| Forming stations | 16-20stations |
| Woking speed | 12-15m/min |
| Raw material | Color steel, galvanzied steel |
| Material thickness | 0.4mm-0.8mm |
| Machine structure | wall plate or guide column |
| Driven type | Motor |
| Transmission | Chains or gear boxes |
| Roller material | GCR15 steel with heat treatment |
| Shaft material | High grade 45# steel |
| Shaft diameter | 80mm |
| Voltage | 350V,50HZ,5phrase |
Control system
| Control system | PLC frequency control system with touch screen |
| PLC brand | Japan panasonic |
| Encoder brand | Ombrand |
| Transducer | Panasonic |
Hydraulic Station System
| Hydraulic Power | 3kw |
| Hydraulic oil | 40# |
| Oil pump | 3kw |
| Hydraulic station Pressure | 20Mpa |
Cutting Device
| Cutting Material | GCR12 with quenched treatmentHR58-62 |
| Cutting tolerance | +/-1.5mm |
Products Pictures
Working Flow
| Manul/hydraulic,automatic Decoiler |
|
| Main roll forming |
|
| Hydraulic cutting |
|
| Manual out table |
Machine Application and pictures
.
Roof tile, Glazed tile, roof sheet , roof panel , roof cladding, roof and wall cladding , corrugated roof tile, Double layer roof tile roll forming machines, is widely used for producing various wall and roof tile, panles, sheets for steel structure, moving house, builidng cinstructions.
Machine design adopt the advanced European technology and craft , the machine design principle is to use all kinds of special rollers to form the customized shape of the roof tile, roof sheets.

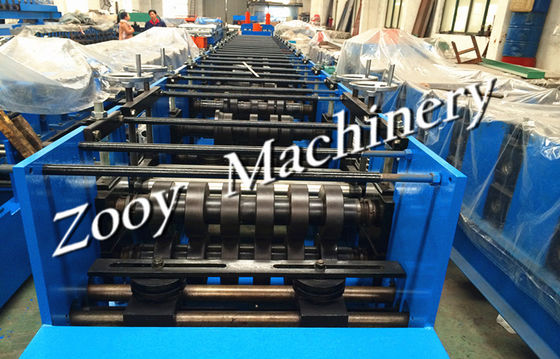

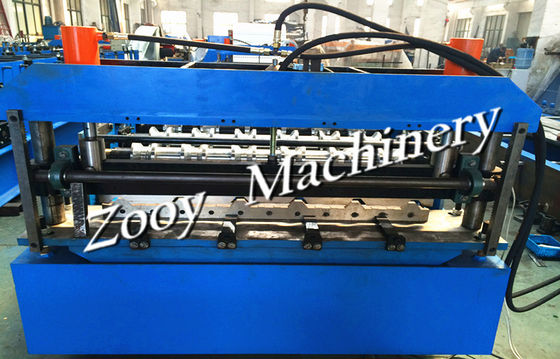

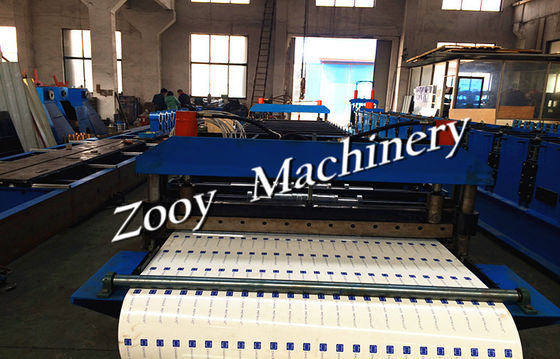

Machine Components Pictures
After-sale-service
| Warranty: | 1 year from the date of shippment |
| Payment terms: | 30%T/T advanced , 70%T/T before shippment |
| After-service | 1. Enginners are avaiable to the customers' factory to test the machine and teach the workers to operate |
| Delivery Time | 30-65 working days |
