| हाई लाइट: | pumps spare parts,hydraulic piston pump parts |
||
|---|---|---|---|
16cc Displacement Hydraulic Piston Pump Parts For Engineering Machine
Quick details
Hydraulic Piston Pump Parts
16cc, 18cc, 28cc, 45cc Displacement
Cylinder block, Piston shoe
for Hydraulic System, engineering machine
Hydraulic Piston Pump Parts for Engineering Machine with Cylinder block
Spare parts for hydraulic pump of A10V series
Displacement have 16cc, 18cc, 28cc, 45cc, 71cc, 100cc, 140cc

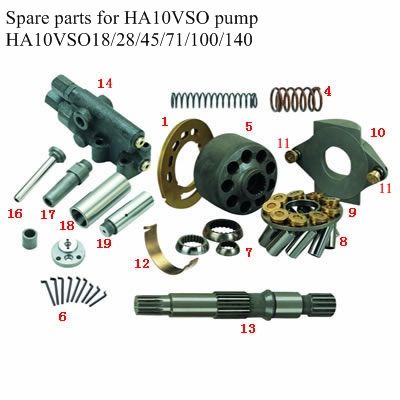

There are Cylinder block, Piston shoe, Retainer plate, Ball guide, Valve plate, Swash plate, Thru-drive shaft and without thru-drive shaft, Rear cover, Compensator of DR, DFR, DFR1, DRG and DFLR,
Specifications:
|
Specifications |
|
|
|
16/18 |
28 |
45 |
71 |
100 |
140 |
|
Displacement |
|
Vg max |
cm3 |
18 |
28 |
45 |
71 |
100 |
140 |
|
Max speed |
|
nmax |
rpm |
3300 |
3000 |
2600 |
2200 |
2000 |
1800 |
|
Max. flow |
in nmax |
qv |
L/min |
59.4 |
84 |
117 |
156 |
200 |
252 |
|
in 1500 r/min |
27 |
42 |
68 |
107 |
150 |
210 |
|||
|
Max. power (Δp=280bar)
|
in nmax |
Pmax |
Kw |
27.7 |
39 |
55 |
73 |
93 |
11 |
|
in 1500 r/min |
12.6 |
20 |
32 |
50 |
70 |
98 |
|||
|
Max. torque (Δp=280bar)
|
in Vg max |
Tmax |
Nm |
80.1 |
125 |
200 |
316 |
445 |
623 |
|
Weight |
|
m |
Kg |
12 |
15 |
21 |
33 |
45 |
60 |
Applications:
Hydraulic System, engineering machine, Concrete pump truck, Boats hydraulic system.
Advantage:
Good quality, Competitive price and quick delivery.
Low noise, Small Volume
