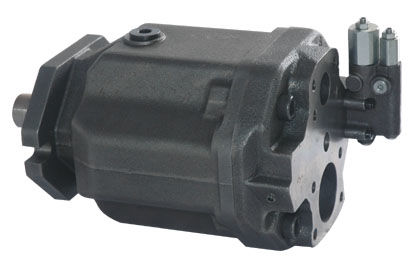

Pressure Flow Control Axial Hydraulic Pump Systems , Thru-drive Rear Cover
Quick details
Pressure and Flow Control Axial Pump Systems
Pressure and Flow control
SAE 2 hole UNC inch thread
Thru-drive Rear Cover
for Ship Hydraulic system
Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc
.
Pressure and Flow control
Clockwise Rotation
Perbunan seals
Splined shaft
SAE 2 hole UNC inch thread
Thru-drive Rear Cover, can connect another pump
Specifications:
Specifications: |
|
|
| 16/18 | 28 | 45 | 71 | 100 | 140 |
Displacement |
| Vg max | cm3 | 18 | 28 | 45 | 71 | 100 | 140 |
Max speed |
| nmax | rpm | 3300 | 3000 | 2600 | 2200 | 2000 | 1800 |
Max. flow | in nmax | qv | L/min | 59.4 | 84 | 117 | 156 | 200 | 252 |
in 1500 r/min | 27 | 42 | 68 | 107 | 150 | 210 | |||
Max. power (Δp=280bar) | in nmax | Pmax | Kw | 27.7 | 39 | 55 | 73 | 93 | 118 |
in 1500 r/min | 12.6 | 20 | 32 | 50 | 70 | 98 | |||
Max. torque (Δp=280bar) | in Vg max | Tmax | Nm | 80.1 | 125 | 200 | 316 | 445 | 623 |
Weight |
| m | Kg | 12 | 15 | 21 | 33 | 45 | 60 |
Applications:
Hydraulic system. Ship Hydraulic system.
excavator, for machine tool, farming, slurry mud,Oilfield Drilling Rig
Advantage:
Good quality, Competitive price and quick delivery.
Low noise, SmallVolume
