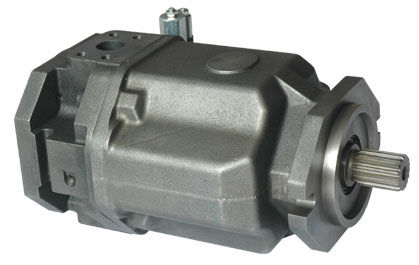

Clockwise Rotation Portable Hydraulic Piston Pumps , Small volume

Clockwise Rotation Portable Hydraulic Piston Pumps , Small volume
Clockwise Rotation Portable Hydraulic Piston Pumps , Small volume

बड़ी छवि :  Clockwise Rotation Portable Hydraulic Piston Pumps , Small volume

उत्पाद विवरण:
Place of Origin: China
ब्रांड नाम: Hengyuan Hydraulic
प्रमाणन: ISO9000
Model Number: A10VSO18/28/45/71/100/140
भुगतान & नौवहन नियमों:
Minimum Order Quantity: 1 pc
Packaging Details: Carton
Delivery Time: 15days
Payment Terms: T/T, L/C
Supply Ability: 1000 pcs per month
विस्तृत उत्पाद विवरण
हाई लाइट:

single piston pump

,

axial piston pump

Clockwise Rotation Portable Hydraulic Piston Pumps , Small volume

Quick details

Hydraulic Piston Pumps

displacement is 18cc/28cc

Perbunan seal

Thru-drive Rear Cover

Hydraulic system. Ship Hydraulic system



Ship Hydraulic System Hydraulic Piston Pumps



Axial piston pump, displacement is 18cc/28cc/45cc/71cc/100cc/140cc.

Pressure and Flow control

Clockwise Rotation

Perbunan seals

Splined shaft

SAE 2 hole UNC inch thread

Thru-drive Rear Cover, can connect another pump



Specifications:

Specifications:







16/18

28

45

71

100

140

Displacement



Vg  max

cm3

18

28

45

71

100

140

Max speed



nmax

rpm

3300

3000

2600

2200

2000

1800

Max. flow

in  nmax

qv

L/min

59.4

84

117

156

200

252

in 1500 r/min

27

42

68

107

150

210

Max. power (Δp=280bar)



in nmax

Pmax

Kw

27.7

39

55

73

93

118

in 1500 r/min

12.6

20

32

50

70

98

Max. torque (Δp=280bar)



in Vg  max

Tmax

Nm

80.1

125

200

316

445

623

Weight



m

Kg

12

15

21

33

45

60





Applications:

Hydraulic system. Ship Hydraulic system.



Advantage:

Good quality, Competitive price and quick delivery.

Low noise, SmallVolume
